How MEP Coordination in BIM Reduces RFIs and Costly Site Delays

Written by Analytix Editorial Team | May 6, 2026

If you have worked on a construction project recently, you already know how complex buildings have become.

Ceiling spaces are packed. Mechanical rooms are tight. Shafts carry more services than ever before. Mechanical, electrical, plumbing, fire protection, low voltage, and specialty systems all compete for the same physical space.

When coordination fails, problems show up in the field.

A duct hits a beam. A cable tray blocks a sprinkler line. A plumbing stack runs through an electrical panel clearance zone. Suddenly, work stops. Someone submits an RFI. Crews wait. The schedule slips.

You feel it immediately.

RFIs slow decision-making. Site delays increase labor costs. Rework eats into your margin. Owners grow frustrated.

Most of these issues are not caused by bad intent or poor workmanship. They happen because 2D drawings cannot fully represent the complexity of modern building systems.

This is where MEP coordination in BIM changes the game.

Instead of discovering conflicts onsite, you detect and resolve them digitally during preconstruction. Instead of reacting to field problems, you prevent them.

When you use structured MEP coordination in BIM, you reduce RFIs, protect your schedule, and avoid costly site disruptions.

In this article, you will learn what MEP coordination in BIM really means and how it works in practice.

What Is MEP Coordination in BIM?

Before you can reduce RFIs and delays, you need to clearly understand what MEP coordination in BIM actually involves.

MEP stands for Mechanical, Electrical, and Plumbing. These systems include ductwork, piping, cable trays, conduits, fire protection lines, and equipment installations. In modern buildings, these systems are dense and interconnected.

BIM stands for Building Information Modeling. It is a digital process that uses intelligent 3D models to plan, design, construct, and manage buildings.

When you combine MEP systems with BIM, coordination becomes proactive instead of reactive.

Common MEP Coordination Conflicts in Construction

If you have spent time on a jobsite, you have probably seen the same types of coordination issues repeat from project to project.

Most RFIs and delays are not caused by rare or unusual conditions.

They come from predictable spatial conflicts between building systems.

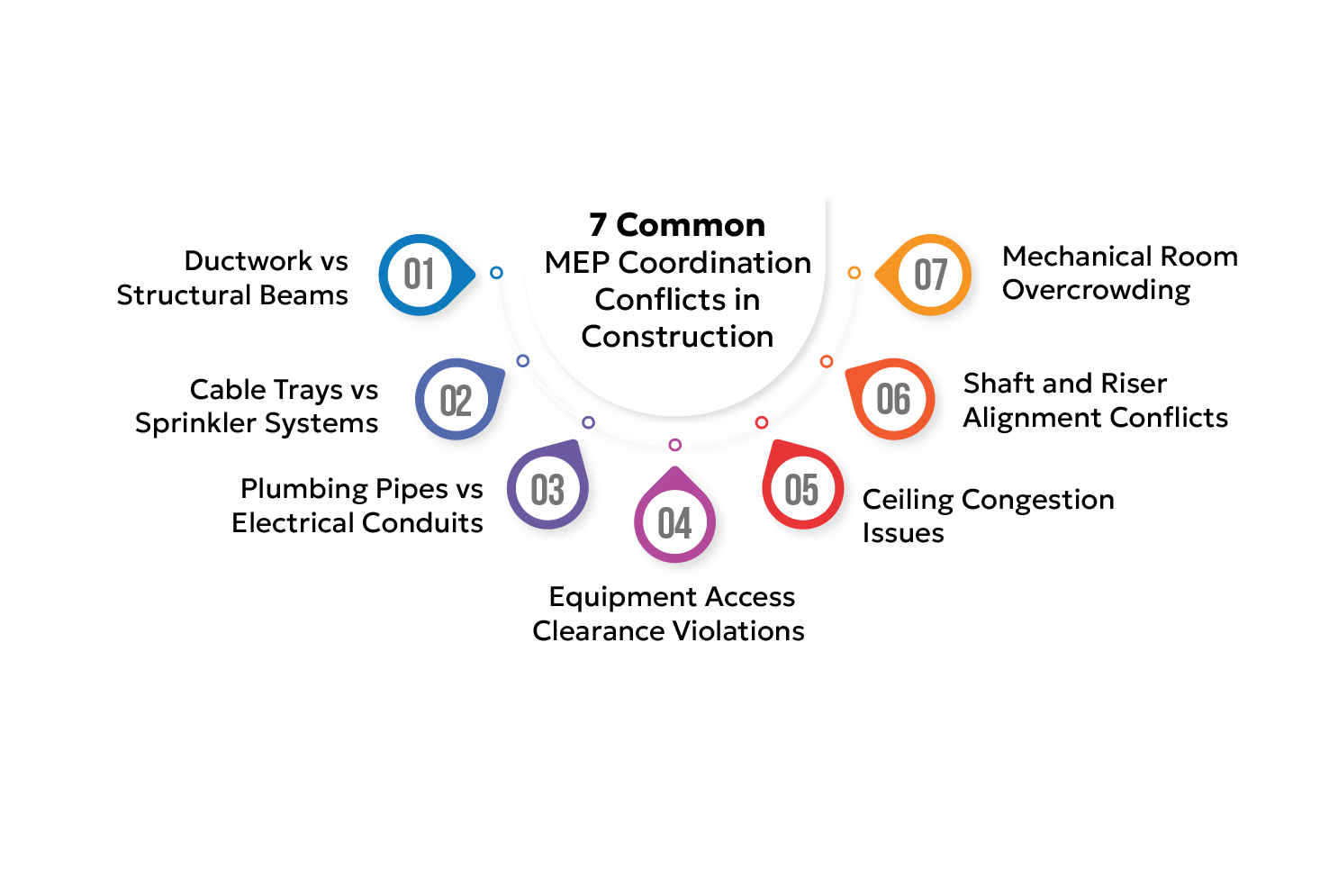

7 Common MEP Coordination Conflicts in Construction

When you understand the most common MEP clashes, you can better appreciate why BIM coordination is so valuable.

Ductwork vs Structural Beams

This is one of the most frequent conflicts.

Mechanical ducts require significant space, especially large supply and return mains. Structural beams, however, are often fixed elements that cannot be moved easily.

In 2D drawings, these systems may appear aligned. But in reality, elevation differences create physical clashes.

Without coordination, the duct may be fabricated and delivered to the site before the conflict is discovered. At that point, redesign and refabrication may be required.

With BIM coordination, you detect this clash digitally and adjust routing before fabrication begins.

Cable Trays vs Sprinkler Systems

Electrical cable trays and fire sprinkler piping often share ceiling space.

If these systems are designed independently, they can intersect in congested areas such as corridors and data rooms.

Sprinkler systems also have strict code requirements for spacing and head placement. Relocating them late in construction can be costly.

BIM coordination ensures that both trades understand spatial constraints before installation.

Plumbing Pipes vs Electrical Conduits

Plumbing lines, especially larger waste and vent pipes, require slope.

Electrical conduits often run horizontally through the same spaces.

When slope requirements are not considered during design, pipes may conflict with conduits, forcing last-minute adjustments.

Coordination models allow you to visualize slope in 3D and avoid overlap.

Equipment Access Clearance Violations

MEP equipment, such as air handling units, electrical panels, and pumps require maintenance clearance.

If access zones are not respected during coordination, equipment may be installed too close to walls or other systems.

This creates safety issues and can lead to inspection failures.

In BIM, you can model clearance zones and test them against other systems before installation.

Ceiling Congestion Issues

Modern ceilings carry:

  • Ductwork
  • Sprinkler lines
  • Cable trays
  • Lighting
  • Sensors
  • AV systems

When ceiling plenum space is limited, conflicts multiply.

Without 3D coordination, it is nearly impossible to see how crowded the ceiling becomes.

BIM coordination helps you stack systems strategically and prioritize routing.

Shaft and Riser Alignment Conflicts

Vertical shafts and risers carry multiple systems across floors.

If alignment is not coordinated early, conflicts may occur between:

  • Plumbing stacks
  • Electrical risers
  • Mechanical ducts

Relocating vertical shafts after construction begins can cause major schedule disruptions.

Coordinated models allow you to align systems across levels accurately.

Mechanical Room Overcrowding

Mechanical rooms often become compressed zones of equipment, piping, and cable management.

If the layout is not coordinated in detail, technicians may struggle to access equipment or route piping properly.

In BIM, you can simulate equipment placement and ensure adequate access before installation.

How BIM Clash Detection Reduces RFIs

Now that you have seen the most common MEP conflicts, the next question is simple.

How does BIM clash detection actually reduce RFIs?

The answer comes down to timing and clarity.

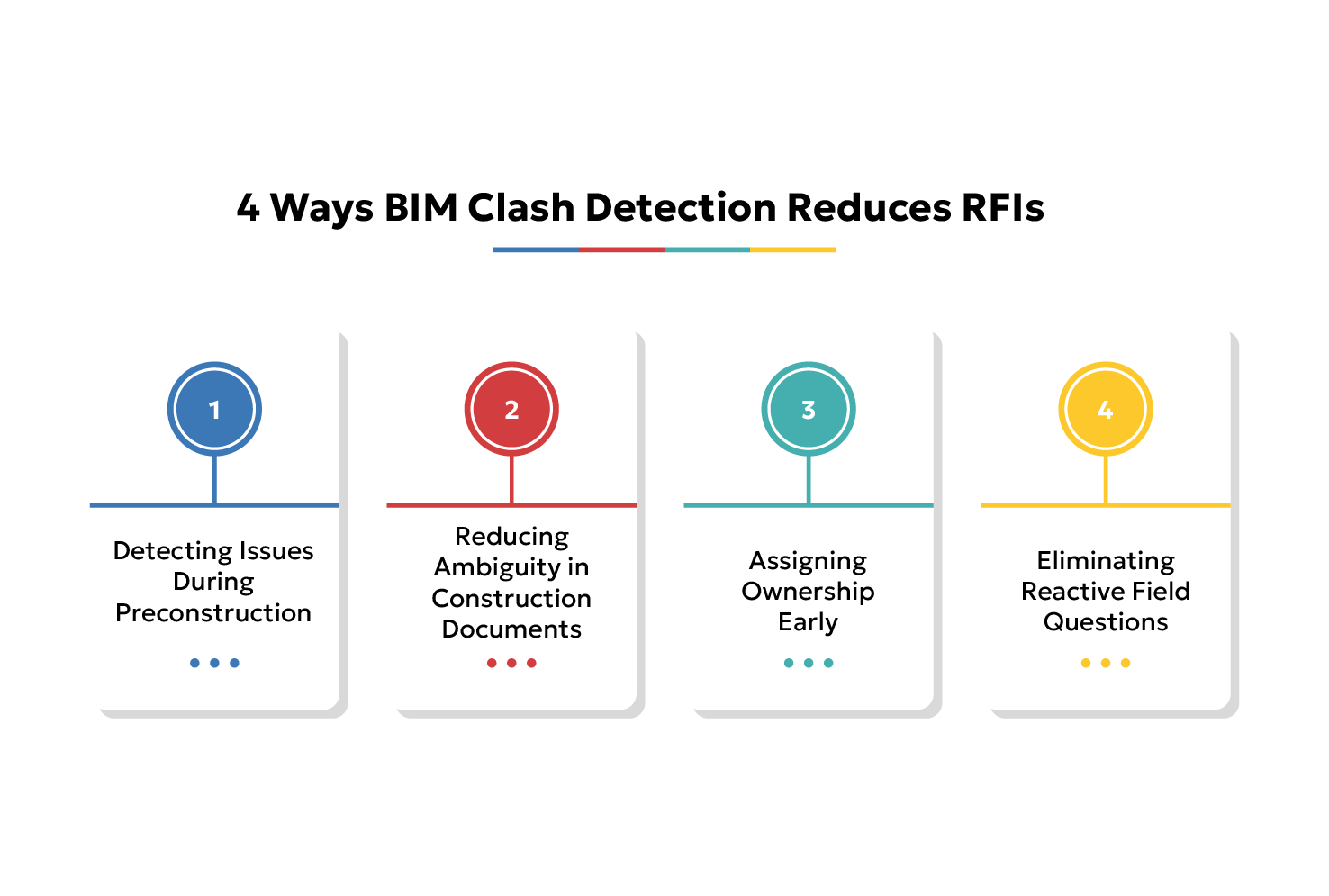

4 Ways BIM Clash Detection Reduces RFIs

RFIs are usually submitted when there is uncertainty. A drawing is unclear. A detail is missing. A conflict appears between trades. The field team needs clarification before proceeding.

BIM clash detection reduces that uncertainty before construction begins.

Detecting Issues During Preconstruction

When all trade models are combined into a federated BIM model, you can run automated clash detection tests.

These tests identify:

  • Hard clashes where two elements physically intersect
  • Soft clashes where clearance zones are violated
  • Workflow conflicts that may impact installation sequencing

Instead of waiting for crews to discover a problem on-site, you detect it in a digital environment where changes are easier and less expensive.

Resolving a clash in a model takes hours. Resolving it onsite may take days.

Reducing Ambiguity in Construction Documents

Many RFIs stem from ambiguous drawings.

For example:

  • A duct elevation is not clearly defined
  • A penetration location is not dimensioned precisely
  • Access clearance is not specified

When coordination is performed in 3D, you define exact routing, elevations, and locations.

This reduces interpretation errors.

Clear models reduce questions.

Fewer questions mean fewer RFIs.

Assigning Ownership Early

Another common cause of RFIs is unclear responsibility.

When a conflict is discovered on-site, trades may debate who should adjust their system.

With structured BIM coordination, clashes are logged and assigned during coordination meetings.

Each issue is tracked. A responsible party is identified. A resolution is agreed upon before installation begins.

This prevents blame shifting later.

Eliminating Reactive Field Questions

Field crews operate under tight schedules.

When a clash appears unexpectedly, they cannot proceed until it is resolved. That triggers an RFI.

By resolving conflicts digitally, you reduce the number of field-driven surprises.

Crews install based on a coordinated model that has already been reviewed and approved.

This dramatically reduces reactive questions.

Step-by-Step Clash Detection Workflow

A structured clash detection process typically follows these steps:

  • Model Aggregation: All trade models are combined into a single coordinated environment.
  • Clash Testing: Clash detection rules are applied. These rules define which systems should be tested against each other and what tolerances are acceptable.
  • Issue Identification: Clashes are grouped, categorized, and prioritized based on severity and constructability impact.
  • Coordination Meetings: Project teams review clashes, discuss solutions, and assign responsibility.
  • Design Revision: Trades update their models to resolve assigned issues.
  • Model Approval: Updated models are retested. Once major clashes are resolved, the model is approved for construction.

This structured process turns coordination into a repeatable workflow instead of an informal review.

How MEP Coordination Prevents Costly Site Delays

Reducing RFIs is important. But the bigger impact of MEP coordination in BIM is how it protects your schedule.

Site delays are expensive.

They affect labor productivity, subcontractor sequencing, inspections, material deliveries, and client confidence. Even a small coordination issue can ripple across multiple trades.

When you implement structured MEP coordination in BIM, you shift risk away from the field and into a controlled digital environment.

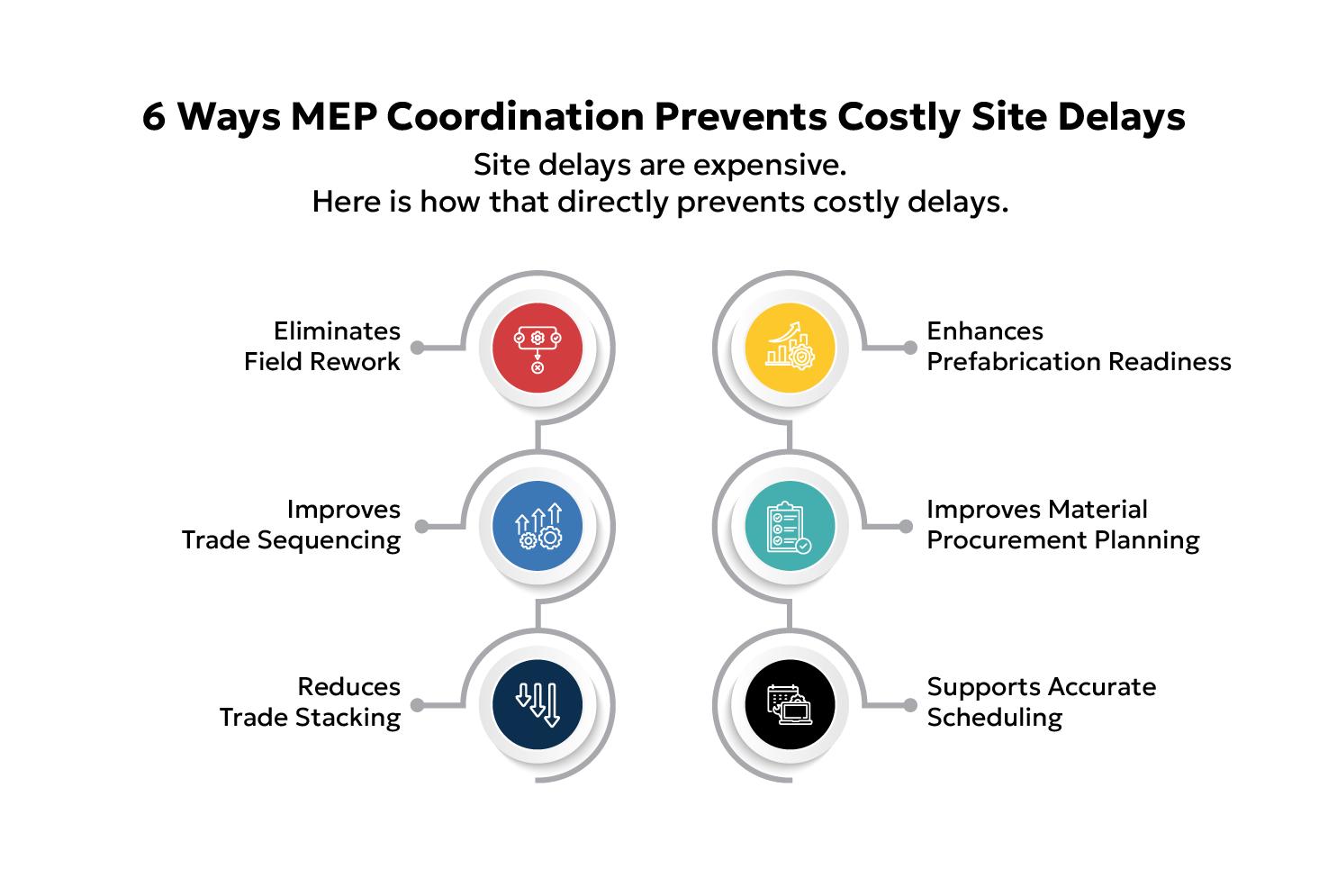

6 Ways MEP Coordination Prevents Costly Site Delays

Here is how that directly prevents costly delays.

Eliminates Field Rework

Rework is one of the biggest drivers of schedule disruption.

If ductwork is installed and later discovered to conflict with electrical conduit, someone has to remove and reinstall part of the system. That takes time. It also impacts adjacent trades.

When clashes are resolved during preconstruction, installation follows a coordinated plan.

You reduce tear-out. You reduce redesign. You reduce emergency decision-making.

That stability keeps your project moving forward.

Improves Trade Sequencing

In uncoordinated projects, trades often compete for space in the same area at the same time.

This leads to trade stacking, where multiple crews work in a congested space. Productivity drops. Safety risks increase.

A coordinated BIM model allows you to define routing priorities and sequencing early.

For example:

  • Large duct mains get installed first
  • Followed by sprinkler lines
  • Then cable trays and conduits
  • Then branch piping

When routing is coordinated digitally, installation sequencing becomes smoother on-site.

Reduces Trade Stacking

Trade stacking slows progress because crews wait for access.

If a mechanical team must pause while electrical reroutes conduits around an unexpected obstruction, the schedule suffers.

With BIM coordination, routing conflicts are resolved before mobilization. Each trade understands where its systems will run.

This reduces interference and improves overall productivity.

Enhances Prefabrication Readiness

Prefabrication is growing in importance across the construction industry.

However, prefabrication only works when models are accurate.

If a pipe rack is prefabricated based on uncoordinated drawings and later does not fit onsite, the delay can be severe.

Coordinated BIM models allow trades to prefabricate with confidence. Systems are built according to verified dimensions and routing.

This shortens installation time and reduces onsite adjustments.

Improves Material Procurement Planning

When routing and equipment placement are finalized early, procurement becomes more predictable.

You avoid last-minute design changes that require reordering materials.

Stable coordination supports accurate bill of materials extraction from the model.

That reduces surprises and keeps delivery schedules aligned with construction sequencing.

Supports Accurate Scheduling

When your coordinated model reflects constructible conditions, your schedule becomes more reliable.

Activities are sequenced based on verified routing. Inspections occur as planned. Commissioning follows installation without repeated adjustments.

Compare two scenarios.

In an uncoordinated project, conflicts are discovered during installation. Work pauses. RFIs are submitted. Revisions are issued. Crews remobilize.

In a coordinated project, major conflicts are resolved digitally. Installation proceeds according to plan. Inspections pass with fewer corrections.

The time savings accumulate quickly.

MEP coordination in BIM does not eliminate every delay. Weather, supply chain disruptions, and design changes may still occur.

But it removes one of the most preventable causes of schedule disruption.

Best Practices for Effective MEP Coordination in BIM

Knowing that BIM coordination reduces RFIs and delays is one thing. Implementing it effectively is another.

Without structure, coordination can become inconsistent or reactive. To truly protect your schedule and reduce field issues, you need a disciplined process.

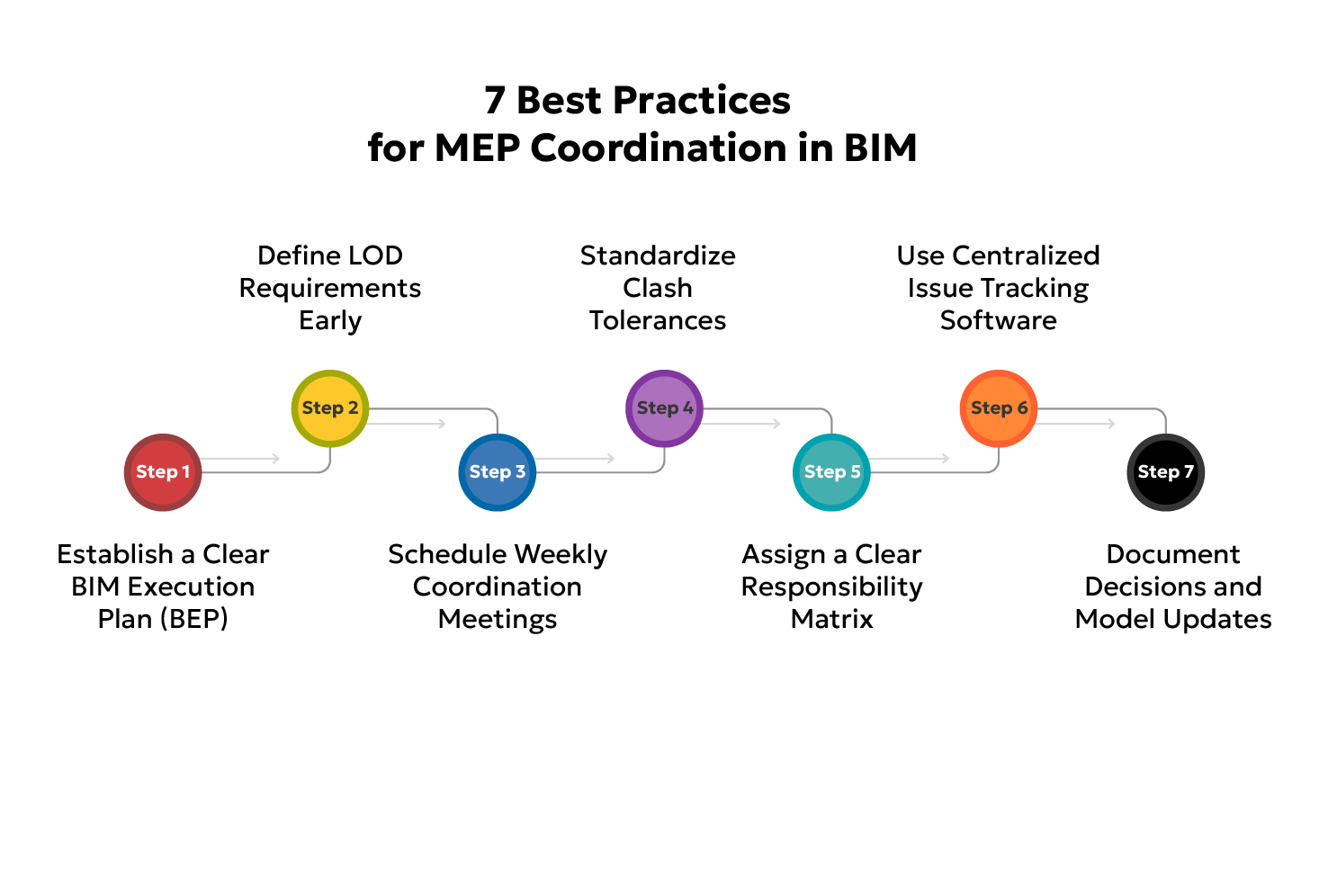

7 Best Practices for MEP Coordination in BIM

Here are the best practices you should follow.

Step 1: Establish a Clear BIM Execution Plan (BEP)

Every successful coordination effort begins with a BIM Execution Plan.

A BEP defines:

  • Modeling standards
  • File naming conventions
  • Level of Development requirements
  • Coordination milestones
  • Roles and responsibilities
  • Clash detection procedures

When expectations are defined early, confusion is reduced later.

The BEP should clearly state who is responsible for model updates, how often models must be shared, and what software platforms will be used.

Clarity at the start prevents disputes during construction.

Step 2: Define LOD Requirements Early

The level of Development must be clearly defined for each trade.

If one trade models at LOD 200 and another models at LOD 400, clash detection may be unreliable.

Define:

  • Required LOD at each project stage
  • Modeling tolerances
  • Clearance requirements
  • Fabrication level expectations

When everyone models to consistent standards, coordination becomes more accurate.

Step 3: Schedule Weekly Coordination Meetings

Coordination is not a one-time activity.

Regular meetings allow teams to:

  • Review clash reports
  • Discuss routing adjustments
  • Assign responsibility
  • Track resolution progress

Weekly coordination meetings are common for complex projects.

Consistency ensures that issues are addressed before they escalate.

Step 4: Standardize Clash Tolerances

Not every clash requires action.

You must define acceptable tolerances.

For example:

  • Minor insulation overlaps may be acceptable
  • Structural penetrations are not
  • Access clearance violations must be resolved

Clear tolerance standards prevent unnecessary redesign while focusing attention on critical issues.

Step 5: Assign a Clear Responsibility Matrix

Each clash should have a clearly assigned owner.

Without ownership, issues remain unresolved.

A responsibility matrix defines:

  • Which trade adjusts first
  • Priority routing hierarchy
  • Escalation procedures

When responsibility is clear, decisions happen faster.

Step 6: Use Centralized Issue Tracking Software

Manual tracking through email leads to missed items.

Modern coordination uses centralized issue tracking platforms that log:

  • Clash ID
  • Location
  • Responsible trade
  • Status
  • Due date

This creates transparency and accountability.

Everyone can see what is open, what is resolved, and what requires action.

Step 7: Document Decisions and Model Updates

Coordination decisions must be documented.

When a routing change is approved, models must be updated promptly.

Outdated models create confusion.

Documented decisions protect the team if questions arise later.

Conclusion

If you step back and look at where most project disruptions begin, a clear pattern appears.

They start with uncertainty.

Unclear drawings. Overlapping systems. Undefined responsibilities. Missing details.

That uncertainty turns into RFIs. RFIs turn into delays. Delays turn into cost overruns.

The good news is that most MEP coordination conflicts are preventable.

When you use structured MEP coordination in BIM, you move problem-solving into preconstruction. You detect clashes before fabrication. You assign responsibility before installation. You confirm routing before crews arrive on-site.

MEP coordination in BIM is not just a design exercise. It is a risk management strategy.

If your projects are experiencing frequent RFIs, recurring coordination issues, or costly site delays, strengthening your BIM coordination process can make a measurable difference.

Analytix Solutions provides structured MEP coordination services built around proven clash detection workflows and standardized BIM processes. Our experienced BIM professionals work closely with contractors, engineers, and project managers to identify and resolve conflicts before construction begins.

If you want to reduce RFIs and prevent costly site delays, now is the time to evaluate your coordination strategy.

Contact Analytix Solutions to schedule a consultation and review your current BIM coordination workflow.

FAQs

1. What is MEP coordination in BIM?

MEP coordination in BIM is the process of combining mechanical, electrical, plumbing, fire protection, and structural models into a single 3D environment to detect and resolve spatial conflicts before construction begins.

2. How does BIM reduce RFIs?

BIM reduces RFIs by identifying clashes and design ambiguities during preconstruction. When conflicts are resolved in the model, field teams have fewer uncertainties, which lowers the number of RFIs submitted during installation.

3. What software is used for MEP clash detection?

Common software tools include Autodesk Navisworks and other BIM coordination platforms that allow model aggregation and automated clash detection.

4. How often should coordination meetings occur?

For complex projects, weekly coordination meetings are typical during active coordination phases. The frequency may vary depending on project size and model update cycles.

5. What LOD is required for effective MEP coordination?

Effective coordination typically requires models at least at LOD 300, with higher levels, such as LOD 350 or 400, used for fabrication and installation level coordination.

6. Does BIM eliminate all RFIs?

No. BIM significantly reduces RFIs related to spatial conflicts, but design clarifications and scope changes may still generate RFIs.

7. Is MEP coordination necessary for small projects?

While smaller projects may have fewer conflicts, coordination is still beneficial in tight spaces or complex renovations. The level of coordination effort should match project complexity.

Recent News

News & Events

Analytix Solutions to Participate in ProSource Summit 2026 i...

February 5, 2026

News & Events

ISE 2026: Where Analytix Solutions Meets the Global AV Commu...

January 13, 2026

News & Events

Innovation, Technology, and Collaboration: Analytix Solution...

October 13, 2025
